Description

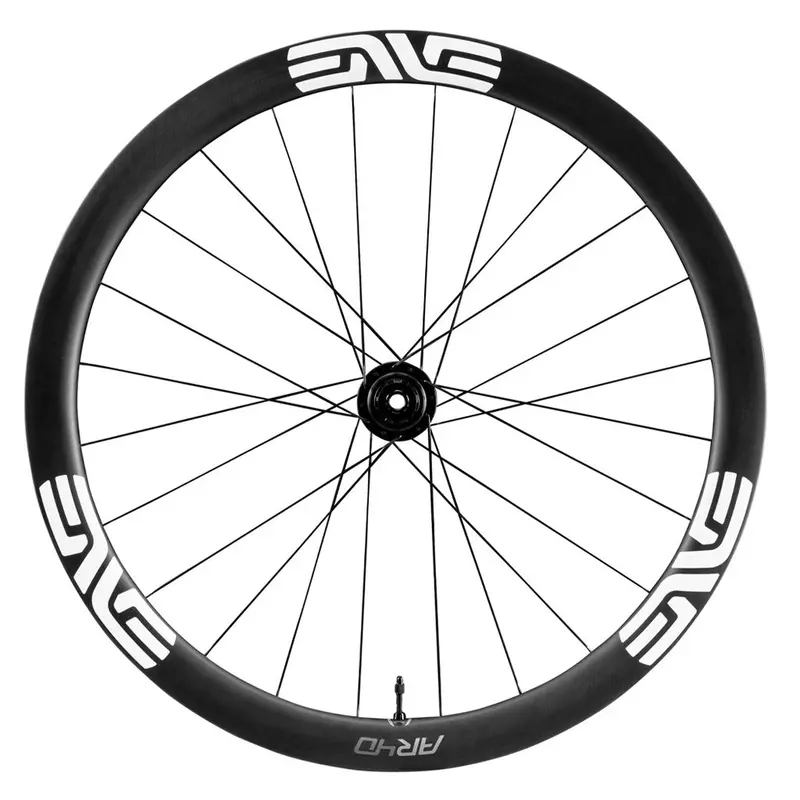

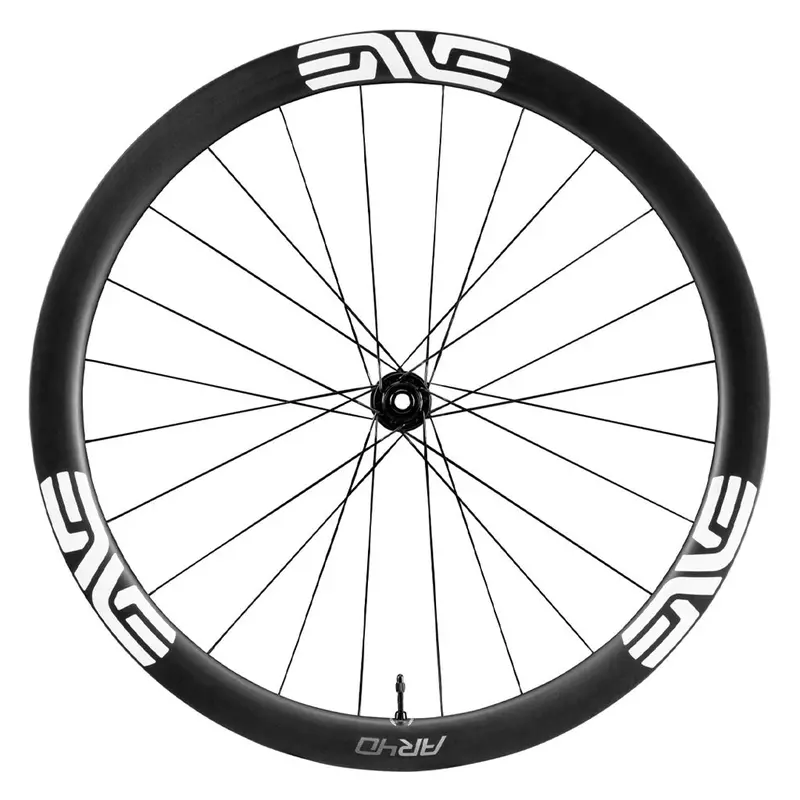

The AR40 is the latest addition to the Foundation lineup. Featuring an aerodynamically optimized 40 mm rim depth front and rear, with a 25 mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road. Borrowing from SES rim design knowledge, the AR40 is aerodynamically tuned for 29 mm – 30 mm tires and delivers drag reduction that punches above its depth and price point. While designed primarily for on-road performance, the AR40 has been tested and qualified to ENVE’s gravel standards to ensure safety and speed for gravel riding and racing applications.
Specifications
- Spokes: Sapim CX-Ray J-Bend
- Hub:
- Front: ENVE INNERDRIVE – Foundation
- Rear: ENVE INNERDRIVE – Foundation
- Hub Spacing: Front: 12×100 | Rear: 12×142
- Nipples: Alpina Nylock Brass
- Spoke Tension: 120kgf
- Brake Type: Centerlock
- Effective Rim Diameter (ERD): 579mm (+/- 3mm)
- Internal Rim Width: 25mm
- Sidewall Width: 3.6mm
- Pinch Flat Technology: Wide Hookless Bead
- Hole Count: 24h
- Depth: 40mm
- Tubeless Tape Width: 29mm
- Tubeless Valve Length: Front: 61mm | Rear: 61mm
- Spoke Tension: 120kgf
- Brake Type: Centerlock
- Spacing: Front: 12×100 | Rear: 12×142
- Rim Weight: Front: 425g | Rear: 425g
- Wheel Weight: Front: 690g | Rear: 825g
- Wheelset Weight: 1515g (Includes Tape and Valves – HG Freehub)
- Recommended Tire Size: 27–50mm
- Minimum Tire Size: 27mm*
- Maximum Tire Pressure (Minimum Tire): 80 psi | 5.5 bar
