Description

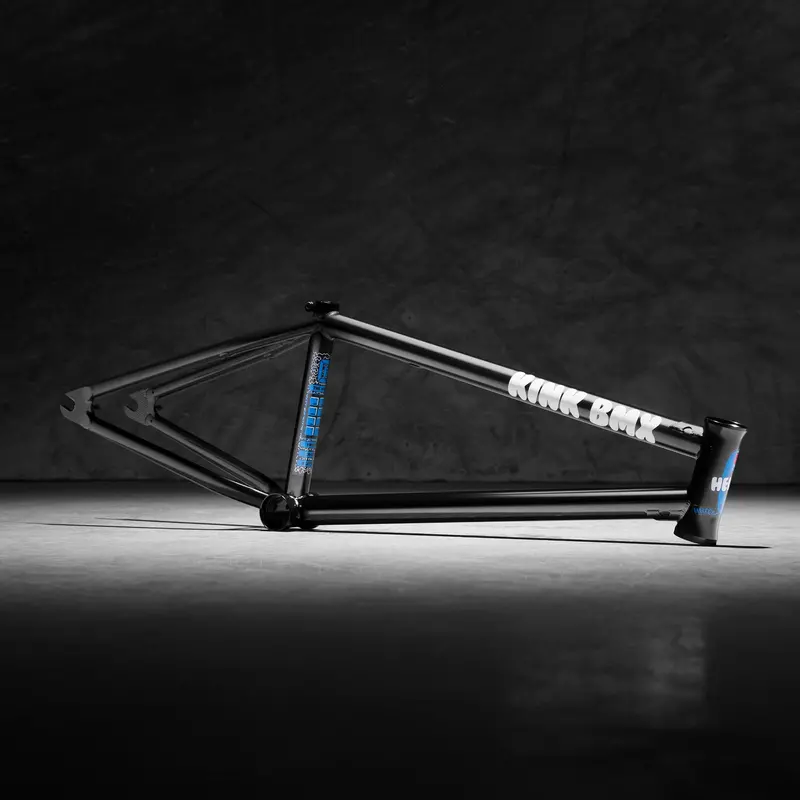

All street, all day. The Royale frame features progressive geometry throughout the design with premium grade materials and craftsmanship to back them up. A 76-degree headtube angle and 12.5” chainstay length make the Royale frame compact and responsive, ideal for modern day street and plaza riding. 100% 4130 chromoly tubing and both toptube and downtube gussets provide a ton of strength and stiffness. Custom interior chainstay forming provides tire clearance up to 2.55” and the seatstay bridge features a brass badge inlay. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake mount lugs for those looking to install brakes.
GEOMETRY
| Toptube Sizes | 20.5”, 20.75”, 21”, 21.25” |
| Chainstay Length | 12.5″ Slammed |
| Bottom Bracket Height | 11.7″ |
| Standover Height | 9″ |
| Headtube Angle | 76° |
| Seattube Angle | 71° |
| Headtube Height | 5″ |
TECH SPEC
| Material | 100% 4130 Chromoly Tubing |
| Headtube | Integrated Campy Spec |
| Dropouts | Laser cut with Integrated Chain Tensioners |
| Bottom Bracket | Internally and Externally Machined Mid Size BB |
| Braking | Removable Through-Bolt Brake Mount System (Hardware Not Included) |
| Particulars | Toptube and Downtube Gussets Integrated Seat Clamp Interior Chainstay Forming for 2.55” Tire Clearance CNC’d Seatstay Bridge with Kink Badge Inlay |
| Weight | 5lb 4oz (20.5″) |
